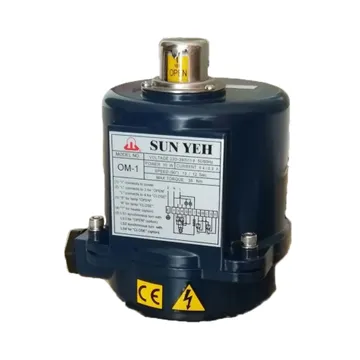

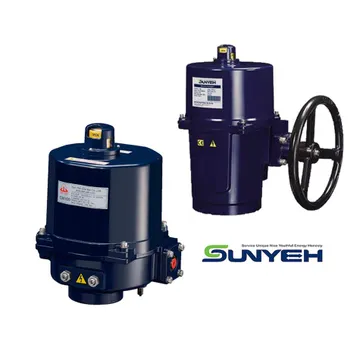

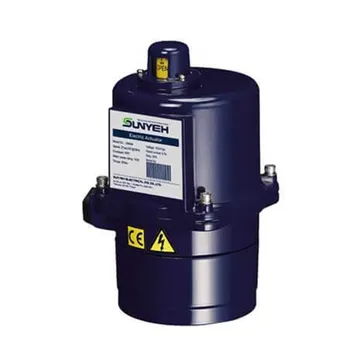

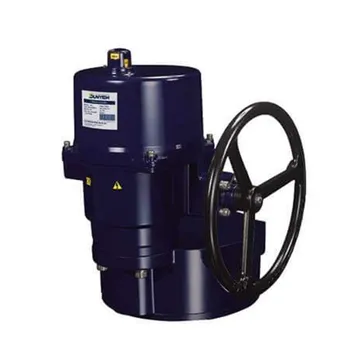

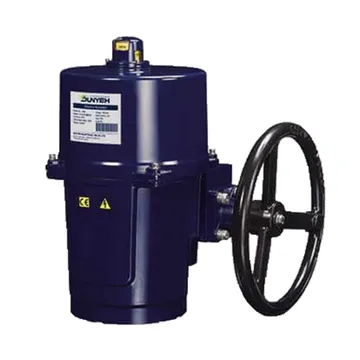

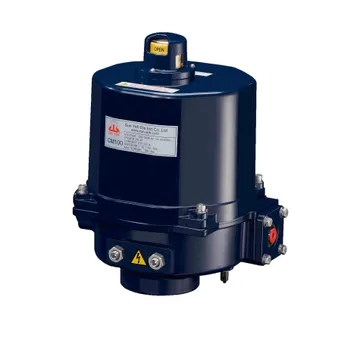

“SUNYEH” ELECTRIC ACTUATOR MADE IN TAIWAN

TORQUE RANGE : 35 NM.- 4500 NM.

ENCLOSURE:

• INGRESS PROTECTION : IP 67, NEMA 4X (WATERPROOF AND DUSTPROOF ENCLOSURE INTENDED FOR OUTDOOR USE).

• MATERIAL : DRY POWDER COATED ALUMINUM ALLOY.

MOTOR:

• F (STANDARD) OR H (OPTIONAL) INSULATION CLASS FOR ALL MODELS

• BUILD-IN THERMAL PROTECTION PREVENTS MOTOR BURNING OUT.

POSITION INDICATOR:

• ALL MODELS HAVE CONTINUOUS MECHANISM INDICATOR ON THE TOP OF ACTUATOR COVER.

WORKING CONDITIONS:

• AMBIENT TEMPERATURE: -30°C ∼ +65°C.

• THE HUMIDITY: 30% ∼ 95%.
